Machines & Die Heads

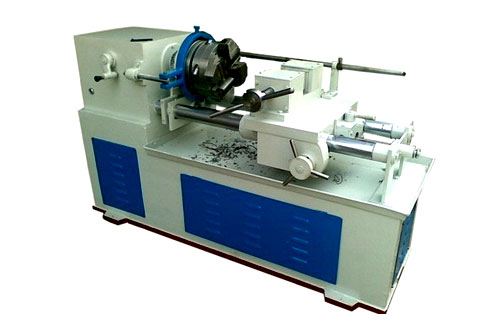

Pipe Threaded Machine with lead screw 2-1/2" to 6" Capacity

 Pipe Nominal Bore  Spindle R. P. M. App.  Power Required
     HP  RPM
 1/2" to 1-1/2"  90 & 120  3  1000
 1/2" to 2-1/2"  60,90 & 120  7.5  1500
 1" to 4"  40, 75 & 115  10  1000
 -1/2" to 6"  25 & 50  15  1000

Pipe Facing Machine

 Pipe Nominal Bore  Spindle R.P.M. App.  Power Required
     HP  RPM
 1/2" to 2-1/2"  120, 175 & 240  3  1500
 2-1/2" to 6"  70,125 & 185  5  1000
 4" to 8"  60,75 & 90  7.5  1000

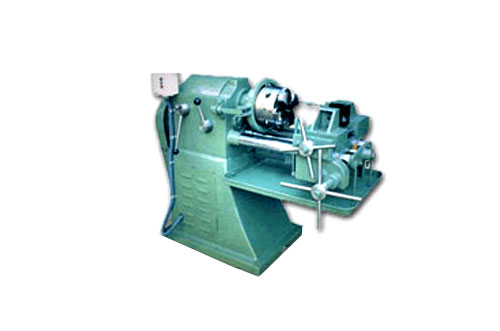

PVC Threading Machine

1/2" to 1-1/2" capacity with lead screw

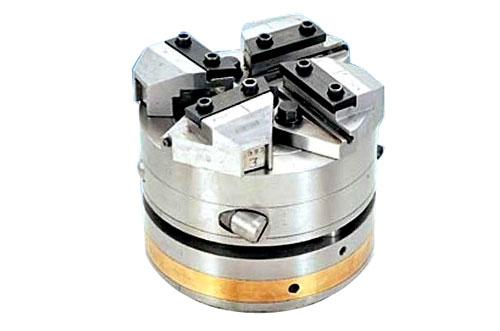

Bolt & Pipe Theading Die Head And Machines

Size in Inches Size in mm
1/4" - 1" 6 mm - 25 mm
3/8" - 11/2" 10 mm - 40 mm
1/2" - 2 1/2" 12 mm - 65 mm
1" - 4" 25 mm - 100 mm
2 1/2" - 6 " 65 mm - 150 mm
4" - 8" 100 mm - 200 mm

Bolt & Pipe Theading Die Head And Machines

Size in Inches Size in mm
1/4" - 1" 6 mm - 25 mm
3/8" - 11/2" 10 mm - 40 mm
1/2" - 2 1/2" 12 mm - 65 mm
1" - 4" 25 mm - 100 mm
2 1/2" - 6 " 65 mm - 150 mm
4" - 8" 100 mm - 200 mm

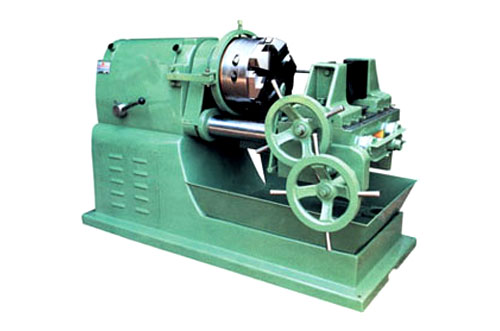

Pipe Threaded Machine

The range of pillar type pipe threading machines offered by us are available in varied sizes like ½" to 2-1/2", 1" to 4", 2"-1/2" to 6" and other capacities. The use of precision engineering in these machines help in producing quality threads within the tolerance limits.
FEATURES:-
1.) Heavy-duty geared head box with quality casting provided for supporting spindle bearings.
2.) The pillar type bed feature two pillars, which are made from quality raw materials.
3.) The saddle is precisely adjusted on two pillars and runs smoothly & accurately on the pillars.

QUALITY

Stringent quality checking right from the beginning of the manufacturing process ensures our assortment of machinery meet the expectation of our client, in terms of quality and functionality.

  • 1.) Adept Team.
    2.) Timely delivery of orders.
    3.) Fair deals.
    4.) Ethical business standards.
    5.) High quality standards.
