Hydraulic Thread Rolling Machines

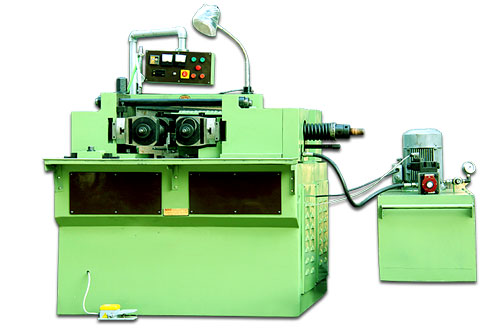

Hydraulic Thread Rolling Machine

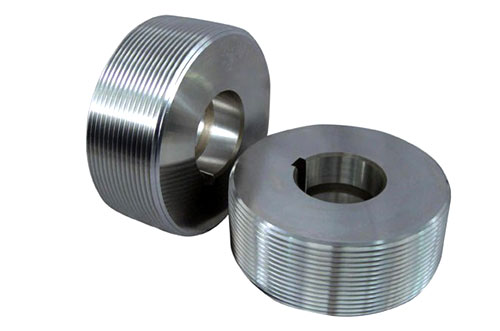

Thread Rolls

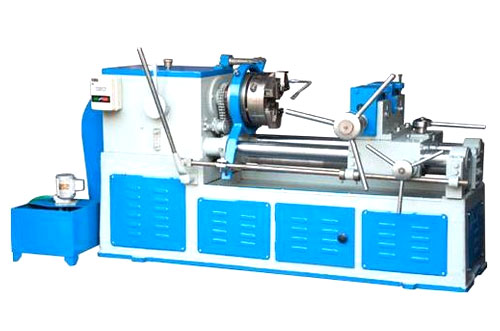

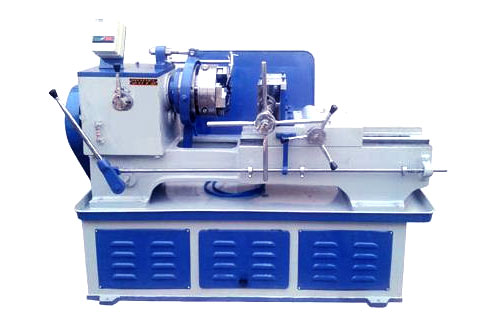

Linco Bolt Thread Machine Bed Type

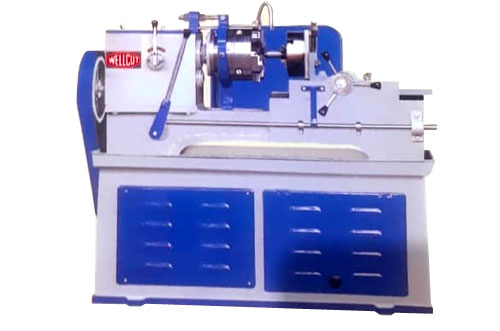

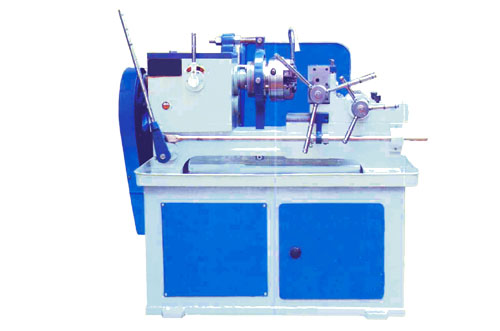

Pillar Type Pipe and Bolt Threading Machines

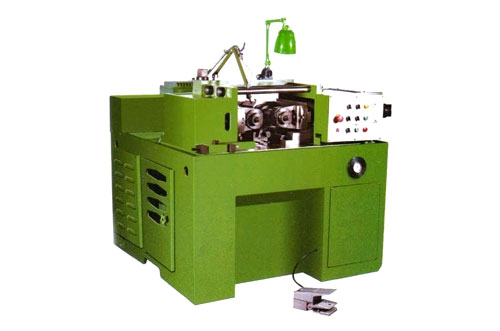

Hydraulic Thread Rolling Machines

TECHNICAL SPECIFICATION

MAIN FEATURES

1.) Powerful constructions permits deep forming of thread, warms serrations khurls.

2.) Rigidity & simplicity : Grade-1 caste hardened and duly scrapped slide also the easy adjustment of machines as well as tooling enables an unskilled laborer to operate machine.

3.) Machine is very much suitable for mass production and best surface finishes.

4.) Machines are also available as per your specific requirements.

5.) The Maximum values specified above can not be always acheved simultaneously.

6.) EXTRA ACCESSORIES : All kind of thread rollers, automatic loader for mass production and other special equipment on request.

7.) All the specifications given above liable to change without notice.

Specifications

Two Role Type

HH-25 HH-30 HH-40 HH-50
HH-80
HH-100 HH-120
 Max. Pitch can be rolled 2.5 3 3.5 4
5
5.5 5
 Max. Dia can be rolled in feed 25 30 40 50
80
100 120
Max. Dia can be
Through Feed
18 20 28 35
40
50 70
  Max Rolling Length in feed 80 100 100 150
150
150 70
Max. Dia can be
Through Feed
indefinite indefinite indefinite indefinite
indefinite
indefinite
indefinite
 Max. Outer Dia Thread Rolls 120 160 180 200
200
200 220
 Spindle Dia (Bore Dia) 40 54 54 54
69.85
76.20
76.20
 Max. Width Thread Rolls 80 100 100 140
150
150
150
 Maximum Rolling Force 8 tons 10 tons 12 tons 15 tons
24 tons
 30 tons
 40 tons
 Power For Roll Spindles 3 HP
1440rpm
3 HP
1440rpm
5 HP
1440rpm
7.5  HP
1440rpm
10 HP
1440rpm
12.5 HP
1440rpm
20HP
1440rpm
 Power For Hydraulic Pump 2 HP/3HP
960/1440rpm
2 HP/3HP
960/1440rpm
2 HP/3HP
960/1440rpm
5 HP
960/1440rpm
5 HP/7.5 HP
960/1440rpm
5 HP/7.5 HP
960/1440rpm
7.5 HP
960/1440rpm
 Power For Coolant Pump 0.1 HP
3000rpm
0.1 HP
3000rpm
0.1 HP
3000rpm
0.1 HP
3000rpm
0.1 HP
3000rpm
0.1 HP
3000rpm
0.1 HP
3000rpm

Bolt Threading Machines

Capacity 1/4" to 1"

 Length of Bed

 48"

 Width of bed

 11"

 Height of bed

 11"

 Length of Pedestal box

 44"

 Width of Pedestal box

 18"

 Height of Pedestal box

 20"

 Length of Slide  17"
 Width of Slide  11"
 Height of Slide  3"
 Length of Head  14 1/2"
 Width of Head  11"
 Height of Head  11 1/2"

Hex Nipple Threading Machine

Capacity 3/8" to 1 1/2"

 Length of Bed  52"
 Width of bed  12 1/2"
 Height of bed  12 1/2"
 Length of Pedestal box  52"
 Width of Pedestal box  19"
 Height of Pedestal box  20"
 Length of Slide  18"
 Width of Slide  12"
 Height of Slide  3"
 Length of Head  15 1/2"
 Width of Head  12"
 Height of Head  12"

Features:-
1.) The Spindle Bore 40mm Fitted with Taper Bearing 32212 & 32211
2.) The Machine Has Two Speeds 60 & 90 RPM
3.) All Gears are Tempered (Oil Seals 42-12-65)
4.) Motor Pulley 12" Diameter, V Belt Drive Vice Fitted with Jaw

QUALITY

Stringent quality checking right from the beginning of the manufacturing process ensures our assortment of machinery meet the expectation of our client, in terms of quality and functionality.

  • 1.) Adept Team.
    2.) Timely delivery of orders.
    3.) Fair deals.
    4.) Ethical business standards.
    5.) High quality standards.
